Product Details

Ultraviolet disinfection principle

Ultraviolet (UV) radiation is classified into four categories based on biological effects: UV-A (320-400nm), UV-B (275-320nm), UV-C (200-275nm), and vacuum ultraviolet. For water treatment, only UV-C is utilized, with peak sterilization efficiency confirmed at around 260nm within this range.

The Guanyu UV disinfection system integrates expertise from optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. It employs a specialized, high-performance UV-C generator—engineered for efficiency, intensity, and longevity—to emit powerful UV-C light, which irradiates flowing water.

When waterborne bacteria, viruses, and other microorganisms are exposed to a specific dose of 253.7nm UV-C light, their cellular DNA and structures are damaged, preventing reproduction and thus purifying the water.

Additionally, 185nm UV wavelengths break down organic molecules in water, producing hydrogen free radicals that oxidize these molecules into carbon dioxide, effectively reducing total organic carbon (TOC).

Advantages

High efficiency sterilization rate

For bacterial and viral disinfection, ultraviolet radiation delivers a 99%-99.9% kill rate, with the process completed in 1 to 2 seconds.

Broad spectrum of sterilization

Ultraviolet sterilization currently offers the broadest spectrum, with high-efficiency lethality against virtually all bacteria and viruses.

No secondary pollution

Ultraviolet disinfection systems are both safe and environmentally friendly. In contrast to traditional technologies using chloride or ozone (disinfectants classified as highly toxic and flammable), they pose no equivalent safety hazards.

Safe and environmentally friendly

Traditional disinfection technologies such as chloride or ozone, the disinfectant itself is a highly toxic and flammable substance. The ultraviolet disinfection system does not have such safety hazards.

Low cost

The operating cost is 1/2 of chlorine disinfection.Ultraviolet disinfection equipment has small footprint, easy installation, low operating cost, and low total investment.

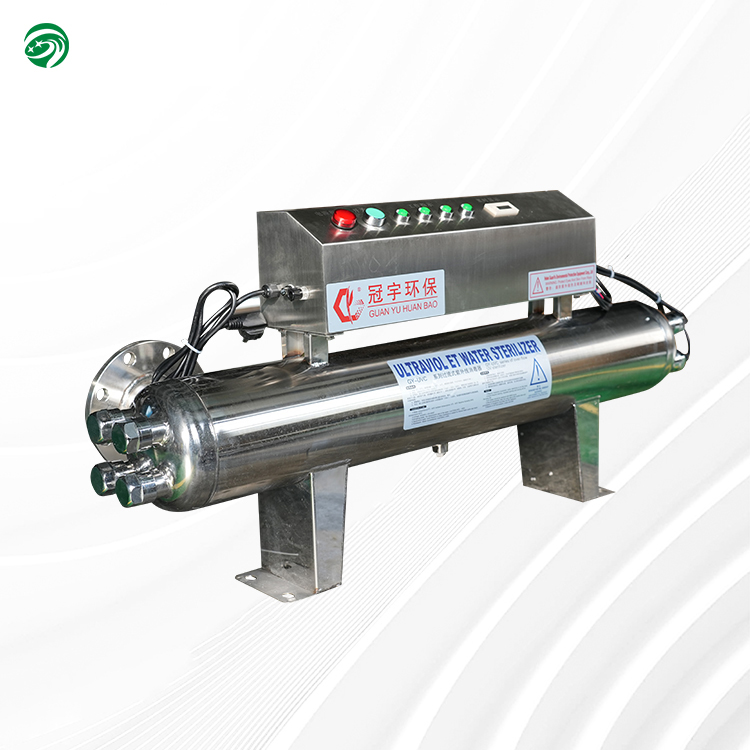

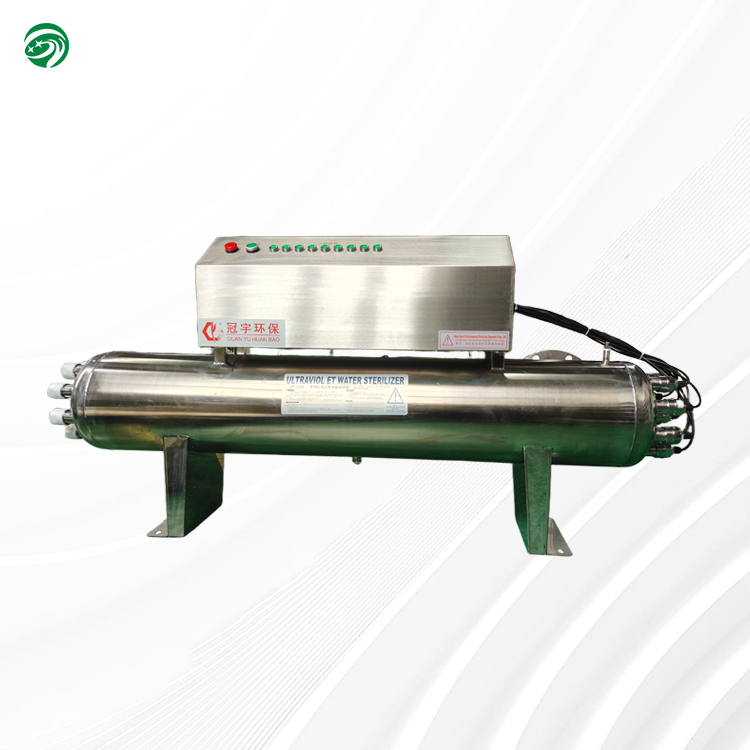

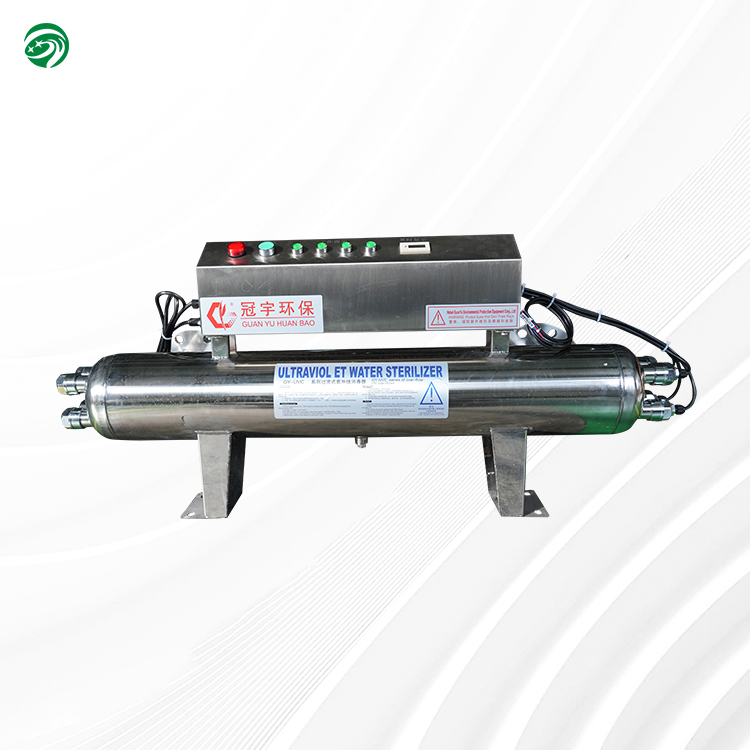

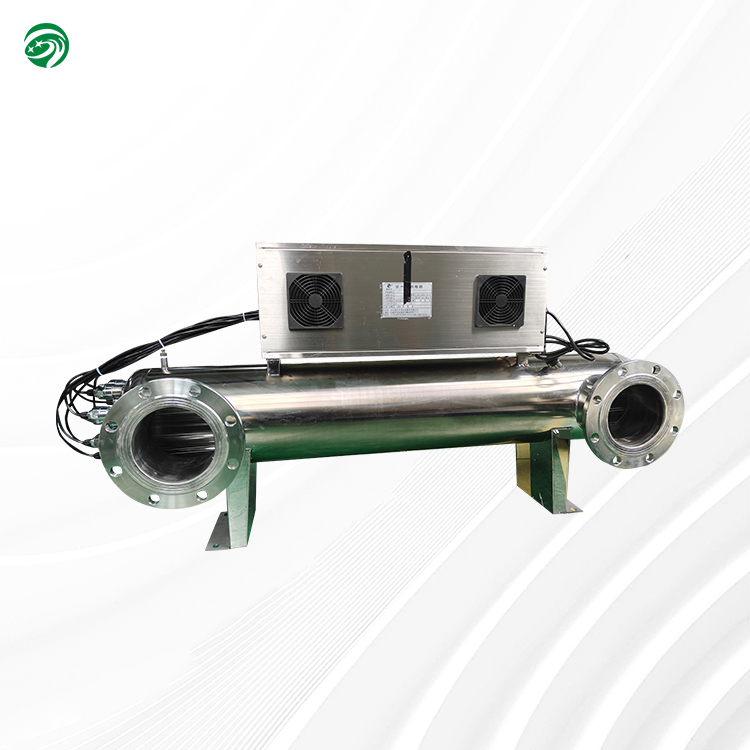

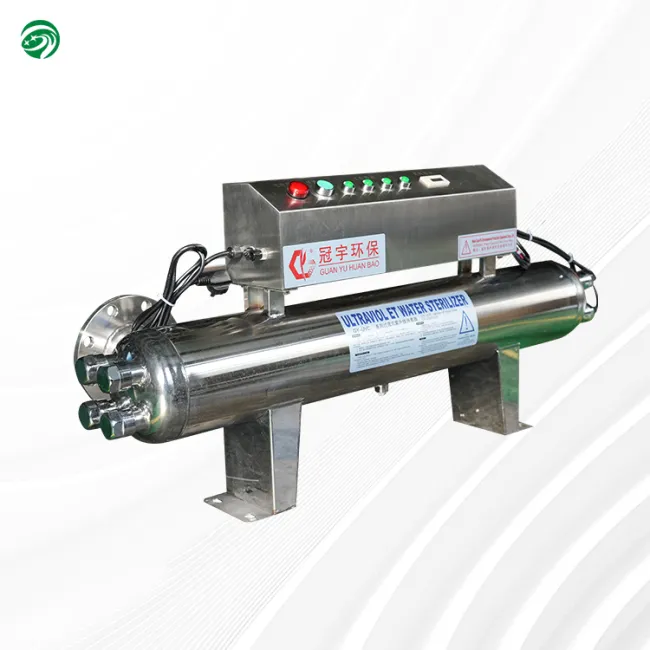

Features of Guanyu UV Sterilizer Disinfection Equipment

Imported lamps: Philips UV lamps (imported) with high intensity, high conversion rate, long life, reliability, and continuous sterilization efficacy.

Custom ballast: Specially tailored electronic ballast with stable performance, high compatibility, strong adaptability, long life, and full protection.

Imported quartz sleeve: Pure Pacific quartz (imported) with high UV transmittance (>93%), good compatibility, and high sterilization efficiency.

Premium stainless steel: Big-brand pharmaceutical/food-grade 316 (304) stainless steel; custom plates/pipes via laser processing, ensuring uniformity, precision, easy installation, and time/labor savings.

Technical Parameters

The inactivation effect of ultraviolet disinfection on microorganisms in water

Type	Name	Time required for 100% killing (seconds)	Type	Name	Time required for 100% killing (seconds)
Bacteria	Anthrax Bacillus	0.30	Bacteria	Tuberculosis (mycobacterium) bacillus	0.41
	Corynebacterium diphtheriae	0.25		Vibrio cholerae	0.64
	Clostridium tetani	0.33		Pseudomonas	0.37
	Clostridium botulinum	0.80		Salmonella	0.51
	Shigella dysenteriae	0.15		Enterobacteriaceae	0.41
	Escherichia coli	0.36		Salmonella typhimurium	0.53
Viruses	Adenovirus	0.10	Viruses	Influenza virus	0.23
	Bacteriophage virus	0.20		Polio virus	0.80
	Coxsackie virus	0.08		Rotavirus	0.52
	Echovirus	0.73		Tobacco mosaic virus	16
	Echovirus type I	0.75		Hepatitis B virus	0.73
Mold spores	Aspergillus niger	6.67	Mold spores	Soft spores	0.33
	Aspergillus spp.	0.73-8.80		Penicillium	2.93-0.87
	Fecal fungus	8.0		Toxigenic Penicillium	2.0-3.33
	Mucor	0.23-4.67		Other Penicillium species	0.87
Algae	Blue-green algae	10-40	Algae	Paramecium	7.30
	Chlorella	0.93		Green algae	1.22
	Nematode eggs	3.40		Protozoa	4-6.70
Fish diseases	Fung1 disease	1.60	Fish Diseases	Infectious Pancreatic Necrosis	4.0
Fish diseases	White Spot Disease	2.67	Fish Diseases	Viral Hemorrhagic Disease	1.6

Common bacteria UV disinfection various sterilization effects required dosage

Product Name\Dosage	90%	99%	99.9%	99.999%	99.9999%
Product Name\Dosage	Dose(uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)
Escherichia coli	3000	4800	6600	10500	15000
Salmonella	2700	4100	5500	7100	8500
rotavirus	9100	19000	26000	36000	48000

Dosage required for ultraviolet disinfection of bacteria and microorganisms (99.9% sterilization effect)

Product name\dose	99.9%	Product name\dose	99.9%
Product name\dose	Dose (uw.s/cm²)	Product name\dose	Dose (uw.s/cm²)
BACTERIA (bacteria)		MOLD SPORES (mold spores)
Bacillus anthracis	8700	Aspergillus flavus	99000
Bacillus	2500	Mucor multibranching	35200
Bacillus subtilis	11000	VIRUSES(virus)
Bacillus subtilis	22000	Escherichia coli phage	6600
Tetanus bacillus	22000	Bacteriophage	6600
Diphtheria Corynebacterium	6500	Enteritis Virus	8000
Escherichia coli	6600	Cold Virus	6600
Micrococcus sphericalus proteinaceous	15400	Poliovirus	6000
Mycobacterium tuberculosis	10000	Cryptospordium	19000
Salmonella enteritidis	7600	Staphylococcus faecalis	10000
Shigella dysenteriae	4200	Streptococcus	3800
Staphylococcus aureus	6600	Vibrio cholerae	6500

Optimal use conditions for UV sterilizer

Iron content

Not more than 0.3ppm (0.3mg/L)

Suspended solids

Not more than 10 ppm (10 mg/L)

Water hardness

Not more than 120 mg/L

Water temperature

5℃~60℃

Hydrogen sulfide

Not more than 0.05 ppm (0.05 mg/L)

Manganese content

Not more than 0.5ppm (0.5 mg/L)

Chroma

Not more than 15 degrees

Application range of ultraviolet disinfection device

Disinfection of water for food, beverage, pharmaceutical, fruit deep processing, etc.

Ultrapure water for electronic industry, field water supply system for military camps

Disinfection of water for hospitals and laboratories, wastewater with high pathogen content

Disinfection of drinking water for residential areas, office buildings, hotels, water plants, etc.

Aquaculture, marine aquaculture, freshwater seedling cultivation, purification and disinfection of aquatic processing, etc.

Disinfection of urban sewage, reclaimed water, landscape water

Disinfection of water for swimming pools and water parks

Disinfection of cooling water for thermal power, industrial production, and central air conditioning system

Disinfection of water for biological, chemical pharmaceutical, and cosmetic production

Disinfection and purification required for high-end environments such as agricultural breeding, agricultural greenhouses, and agricultural irrigation

Factors affecting the effect of UV sterilization

UV transmittance (UVT)

The important factors affecting the effect of UV sterilization are the UV transmittance (UV transmission) of the sterilization medium (water) or the medium absorbance (absorbance). The transmittance of UV and the absorbance of the medium are affected by factors such as dissolved organic matter, inorganic matter and undissolved suspended matter in the water.

Total suspended particles (TSS)

The effect of suspended particles on the sterilization effect of UV is also very obvious. Suspended particles can absorb and reflect UV rays, thereby preventing UV rays from irradiating the DNA of bacteria and viruses. In addition, suspended particles will also accelerate the scaling and contamination of the quartz sleeve, thereby affecting the sterilization effect.

Particle size

The size of particles in the water has a great impact on the effect of UV sterilization, because large suspended particles will form shadows and dead corners for protecting bacteria and viruses. Usually, the effluent from the secondary sedimentation tank is more conducive to UV sterilization, and the average size of suspended particles in the water should be less than 30um.

Exposure time

The exposure time is related to the flow rate. When designing a UV system, it is generally designed according to the peak direct flow rate. The smaller the flow rate, the longer the exposure time, and the system has a greater effective dose.
