Product Details

Ultraviolet disinfection principle

Ultraviolet (UV) radiation is categorized into four types—UV-A (320-400nm), UV-B (275-320nm), UV-C (200-275nm), and vacuum ultraviolet—based on variations in their biological impacts.In water treatment processes, only the UV-C segment of the ultraviolet spectrum is utilized. Within this specific UV-C range, ultraviolet rays with a wavelength around 260nm have been verified to deliver the highest sterilization effectiveness.

The Guanyu ultraviolet disinfection device combines multiple scientific disciplines, including optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. It works by using a specially engineered, high-efficiency, high-intensity, and long-lasting UV-C light source to emit intense UV-C radiation. This radiation is then directed at water as it flows through the device.

Advantages

High Sterilization Efficiency

Ultraviolet disinfection typically eliminates 99% to 99.9% of bacteria and viruses within just one to two seconds.

Wide Sterilization Spectrum

Ultraviolet disinfection boasts the broadest sterilization spectrum available today, and it delivers highly effective killing power against nearly all types of bacteria and viruses.

No secondary pollution

Ultraviolet sterilization operates without the need for adding any chemical agents. This means it won’t introduce secondary pollution to the water body or the surrounding environment, nor will it alter any components present in the water.

Safe and Eco-Friendly

Unlike traditional disinfection methods like chlorination or ozonation—where the disinfectants themselves are highly toxic and flammable—the ultraviolet disinfection system is free from such safety risks.

Economical

Ultraviolet disinfection equipment occupies little space, is simple to install, and comes with low operating costs and a small total investment. Its running expenses are half that of chlorine disinfection.

Features of Guanyu UV Sterilizer Disinfection Equipment

Imported Lamps: High Efficiency & Longevity

The equipment is equipped with imported Philips UV lamps, featuring high-intensity output, high conversion efficiency, extended service life, reliable performance, and consistent sterilization effectiveness.

Professionally Customized Ballast

The electronic ballast integrated into the equipment is custom-developed for this product, boasting stable performance and optimal compatibility. It offers strong adaptability, long durability, and comprehensive protection functions.

Imported Quartz Sleeves

Crafted from pure imported Pacific quartz raw materials, the sleeves ensure high ultraviolet transmittance and sterilization efficiency. They feature excellent compatibility, with UV transmittance reaching over 93%.

Premium 316 (304) Stainless Steel from Big Brands

Using pharmaceutical (food)-grade 316 (304) stainless steel from leading manufacturers, the product’s plates and pipes are custom-made. Key components undergo laser cutting, drilling, and processing, resulting in uniform quality, consistent specifications, strong interchangeability, sleek appearance, high precision, minimal errors, and easy, efficient installation that saves time and labor.

Technical Parameters

The inactivation effect of ultraviolet disinfection on microorganisms in water

Type	Name	Time required for 100% killing (seconds)	Type	Name	Time required for 100% killing (seconds)
Bacteria	Anthrax Bacillus	0.30	Bacteria	Tuberculosis (mycobacterium) bacillus	0.41
	Corynebacterium diphtheriae	0.25		Vibrio cholerae	0.64
	Clostridium tetani	0.33		Pseudomonas	0.37
	Clostridium botulinum	0.80		Salmonella	0.51
	Shigella dysenteriae	0.15		Enterobacteriaceae	0.41
	Escherichia coli	0.36		Salmonella typhimurium	0.53
Viruses	Adenovirus	0.10	Viruses	Influenza virus	0.23
	Bacteriophage virus	0.20		Polio virus	0.80
	Coxsackie virus	0.08		Rotavirus	0.52
	Echovirus	0.73		Tobacco mosaic virus	16
	Echovirus type I	0.75		Hepatitis B virus	0.73
Mold spores	Aspergillus niger	6.67	Mold spores	Soft spores	0.33
	Aspergillus spp.	0.73-8.80		Penicillium	2.93-0.87
	Fecal fungus	8.0		Toxigenic Penicillium	2.0-3.33
	Mucor	0.23-4.67		Other Penicillium species	0.87
Algae	Blue-green algae	10-40	Algae	Paramecium	7.30
	Chlorella	0.93		Green algae	1.22
	Nematode eggs	3.40		Protozoa	4-6.70
Fish diseases	Fung1 disease	1.60	Fish Diseases	Infectious Pancreatic Necrosis	4.0
Fish diseases	White Spot Disease	2.67	Fish Diseases	Viral Hemorrhagic Disease	1.6

Common bacteria UV disinfection various sterilization effects required dosage

Product Name\Dosage	90%	99%	99.9%	99.999%	99.9999%
Product Name\Dosage	Dose(uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)	Dosage (uw.s/cm²)
Escherichia coli	3000	4800	6600	10500	15000
Salmonella	2700	4100	5500	7100	8500
rotavirus	9100	19000	26000	36000	48000

Dosage required for ultraviolet disinfection of bacteria and microorganisms (99.9% sterilization effect)

Product name\dose	99.9%	Product name\dose	99.9%
Product name\dose	Dose (uw.s/cm²)	Product name\dose	Dose (uw.s/cm²)
BACTERIA (bacteria)		MOLD SPORES (mold spores)
Bacillus anthracis	8700	Aspergillus flavus	99000
Bacillus	2500	Mucor multibranching	35200
Bacillus subtilis	11000	VIRUSES(virus)
Bacillus subtilis	22000	Escherichia coli phage	6600
Tetanus bacillus	22000	Bacteriophage	6600
Diphtheria Corynebacterium	6500	Enteritis Virus	8000
Escherichia coli	6600	Cold Virus	6600
Micrococcus sphericalus proteinaceous	15400	Poliovirus	6000
Mycobacterium tuberculosis	10000	Cryptospordium	19000
Salmonella enteritidis	7600	Staphylococcus faecalis	10000
Shigella dysenteriae	4200	Streptococcus	3800
Staphylococcus aureus	6600	Vibrio cholerae	6500

Optimal use conditions for UV sterilizer

Iron content

Not more than 0.3ppm (0.3mg/L)

Suspended solids

Not more than 10 ppm (10 mg/L)

Water hardness

Not more than 120 mg/L

Water temperature

5℃~60℃

Hydrogen sulfide

Not more than 0.05 ppm (0.05 mg/L)

Manganese content

Not more than 0.5ppm (0.5 mg/L)

Chroma

Not more than 15 degrees

Application range of ultraviolet disinfection device

Disinfection of water for food, beverage, pharmaceutical, fruit deep processing, etc.

Ultrapure water for electronic industry, field water supply system for military camps

Disinfection of water for hospitals and laboratories, wastewater with high pathogen content

Disinfection of drinking water for residential areas, office buildings, hotels, water plants, etc.

Aquaculture, marine aquaculture, freshwater seedling cultivation, purification and disinfection of aquatic processing, etc.

Disinfection of urban sewage, reclaimed water, landscape water

Disinfection of water for swimming pools and water parks

Disinfection of cooling water for thermal power, industrial production, and central air conditioning system

Disinfection of water for biological, chemical pharmaceutical, and cosmetic production

Disinfection and purification required for high-end environments such as agricultural breeding, agricultural greenhouses, and agricultural irrigation

Factors affecting the effect of UV sterilization

UV transmittance (UVT)

The important factors affecting the effect of UV sterilization are the UV transmittance (UV transmission) of the sterilization medium (water) or the medium absorbance (absorbance). The transmittance of UV and the absorbance of the medium are affected by factors such as dissolved organic matter, inorganic matter and undissolved suspended matter in the water.

Total suspended particles (TSS)

The effect of suspended particles on the sterilization effect of UV is also very obvious. Suspended particles can absorb and reflect UV rays, thereby preventing UV rays from irradiating the DNA of bacteria and viruses. In addition, suspended particles will also accelerate the scaling and contamination of the quartz sleeve, thereby affecting the sterilization effect.

Particle size

The size of particles in the water has a great impact on the effect of UV sterilization, because large suspended particles will form shadows and dead corners for protecting bacteria and viruses. Usually, the effluent from the secondary sedimentation tank is more conducive to UV sterilization, and the average size of suspended particles in the water should be less than 30um.

Exposure time

The exposure time is related to the flow rate. When designing a UV system, it is generally designed according to the peak direct flow rate. The smaller the flow rate, the longer the exposure time, and the system has a greater effective dose.

Product Features

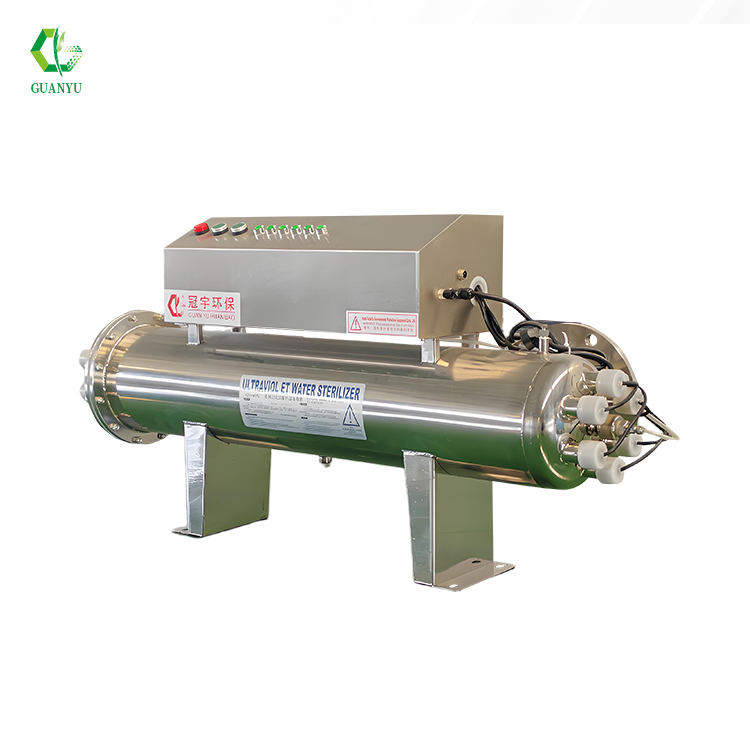

The highly efficient fully automatic mechanical cleaning device (magnetically driven automatic cleaning type) does not affect the normal operation of the disinfection system during cleaning, and no human operation is required

A patented product with intellectual property rights, a cleaning system powered by water pressure, convenient, fast, environmentally friendly, energy-saving, and noise-free

An external distribution box can be placed in a separate space and cavity for separate operation

The whole machine is made of SUS304/316L (optional) stainless steel material, polished inside and outside, with high cleanliness, good disinfection effect, environmental protection and hygiene

Equipped with an ultraviolet intensity monitoring system to facilitate monitoring of the scaling of the quartz tube and the change in the intensity of the ultraviolet lamp (optional)

Equipped with working indicator light, working cumulative hour meter, alarm system (optional)

Equipped with high transmittance, imported raw material quartz sleeves and high stability medium/low pressure sterilization lamps, with a service life of up to

12,000 hours

Equipped with a special ultraviolet ballast, stable operation to ensure the life and efficiency of the ultraviolet sterilization lamp
