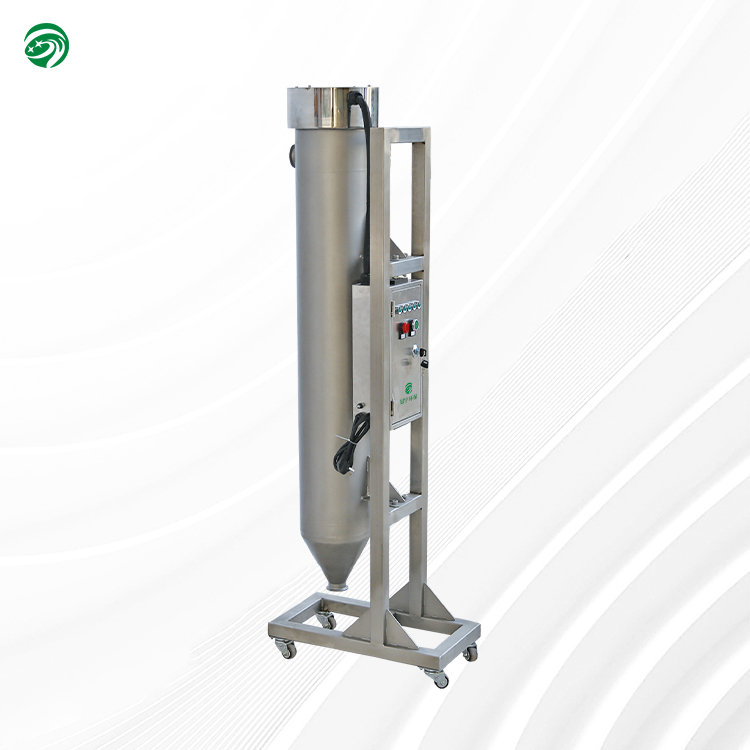

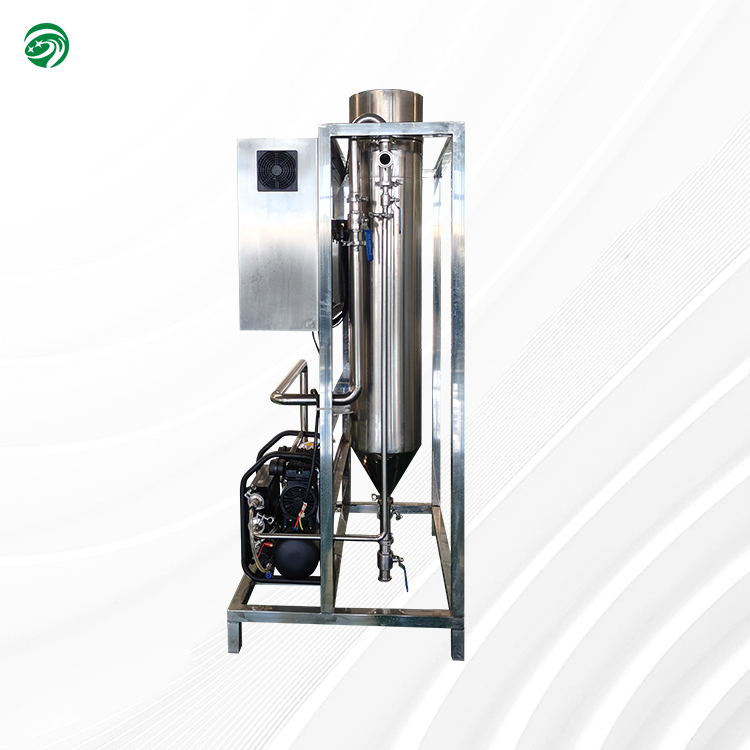

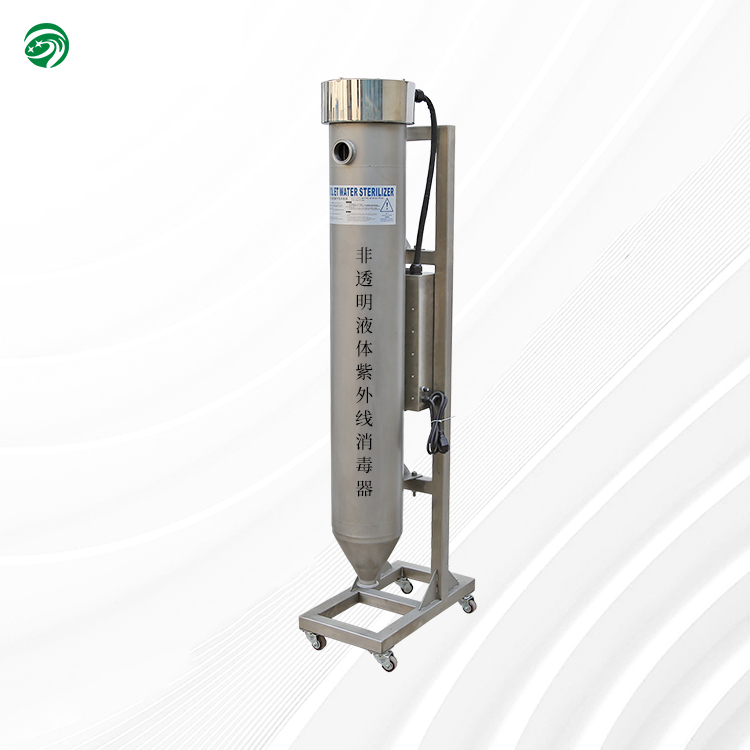

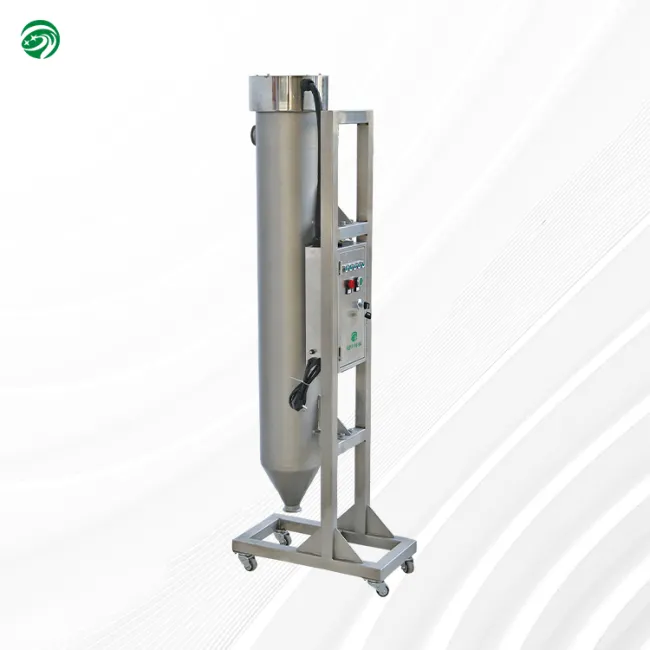

Non-transparent Liquid UV Sterilizer
Non-transparent liquid UV sterilizer
Non-transparent liquid UV sterilizer
Non-transparent liquid UV sterilizer
Non-transparent liquid UV sterilizer

Non-transparent liquid UV sterilizer

BrandXin Guanyu
Lamp brandDomestic/Imported
Lamp life9000/12000 hours
UV wavelength253.7mm
Inlet and outlet diameterDN25-100
Equipment stylePipeline/flow-through type
Single type0.5-4m³/h
Double-tube type5-8m³/h
Combination10-50m³/h
Processing customizationSupport
Material304/316 stainless steel
Product Details

The non-transparent liquid UV sterilizer is a next-generation high-tech product developed by the company. It addresses the challenges of industries like beverages, dairy, and oils—where liquids have complex traits (non-transparency, viscosity, color, temperature) and existing disinfection processes are both complicated and costly. By leveraging the strengths of UV sterilization (convenience, speed, and no impact on product active ingredients), the device has identified the relationship between UV sterilization factors (irradiation distance, irradiation time, liquid thickness, temperature) and bacterial count for non-transparent liquids through extensive testing.


Product Advantages

Prevents nutrient loss in products; in some cases, it even boosts the product’s nutritional value.

Its scientifically designed disinfection chamber enables radial flow of the liquid, which forms a thin film inside the chamber. This enhances UV penetration into the liquid, improving disinfection efficiency. The equipment’s energy output is roughly 7 to 10 times that of traditional disinfection systems.

Can be customized to meet customers’ specific needs, adapting to various operating conditions across the aforementioned industries.

Equipment Models:

Single type: 0.5–4 m³/h

Double tube type: 5–8 m³/h

Combination type: 10–50 m³/h


Scope of Use

Liquid disinfection of beer, milk, goat milk, various dairy drinks, liquid syrup, soy sauce, vinegar, beverages, fruit juice, vegetable juice, oil and other industries.

Technical Parameter
Product modelDimensionsViscosity (cps)/(pa*s)Inlet and outlet diametersFlow rate m/sFlow rate m³/hPower WRemarks
GYF-UUVC-1550*250*165050/0.05DN250.5~0.90.8~1.5120
GYF-UUVC-5650*300*1650DN500.7~1.04.9~7600
GYF-UUVC-8750*350*1700DN65
8~12960
GYF-UUVC-11850*400*1750DN80
12~181320
GYF-UUVC-27
DN1001.0~1.628~45
Customized
GYF-UUVC-1550*250*1650100/0.1DN250.3~0.60.5~1.0120
GYF-UUVC-4550*250*1650DN500.5~0.73.5~4.9480
GYF-UUVC-7650*300*1650DN65
6~8840
GYF-UUVC-10850*400*1750DN80
9~121200
GYF-UUVC-23
DN1000.7~1.019~28
Customized
GYF-UUVC-4550*250*16501000/1DN500.16~0.251.1~1.7480
GYF-UUVC-7650*300*1650DN65
1.9~2.9840
GYF-UUVC-11850*400*1750DN80
2.8~4.51320
GYF-UUVC-22

DN1000.25~0.357~9
Customized
