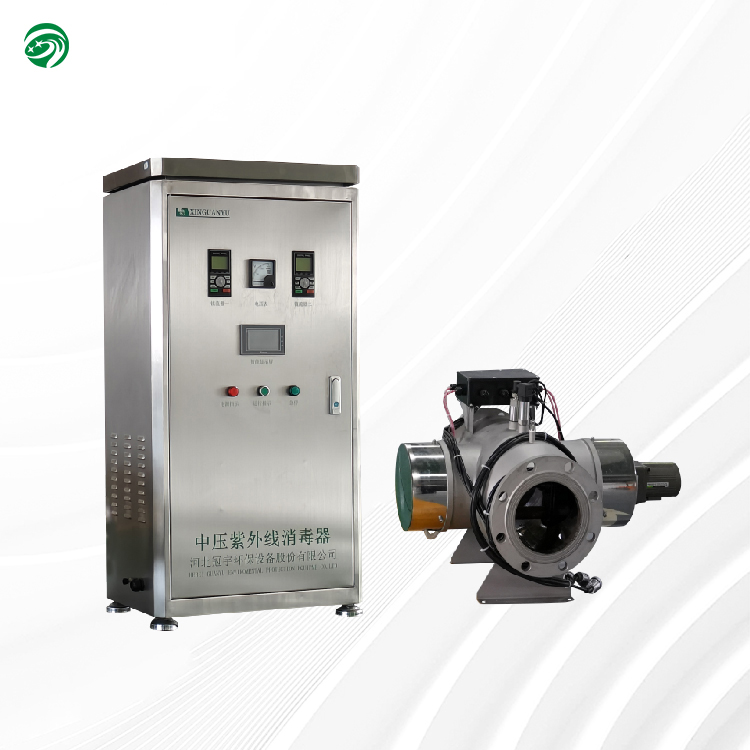

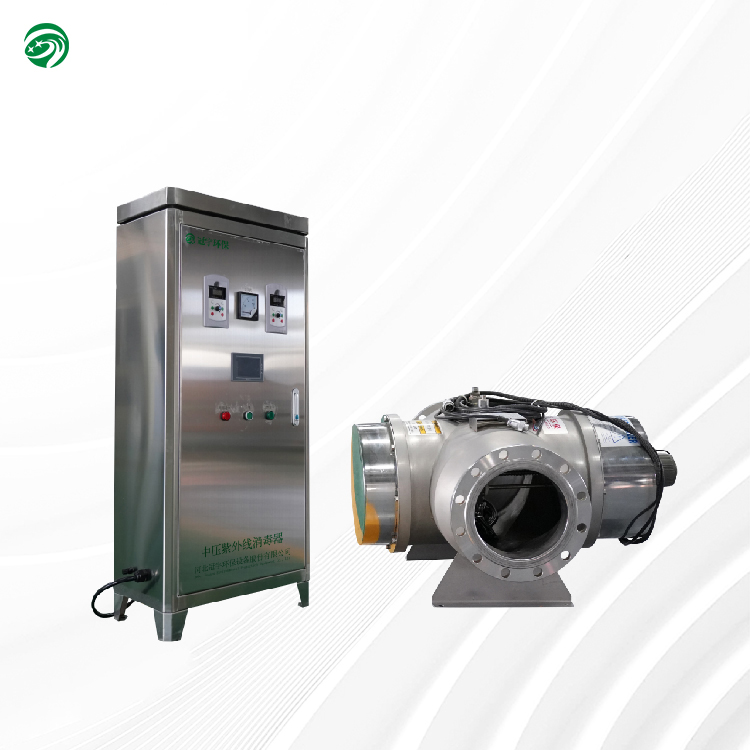

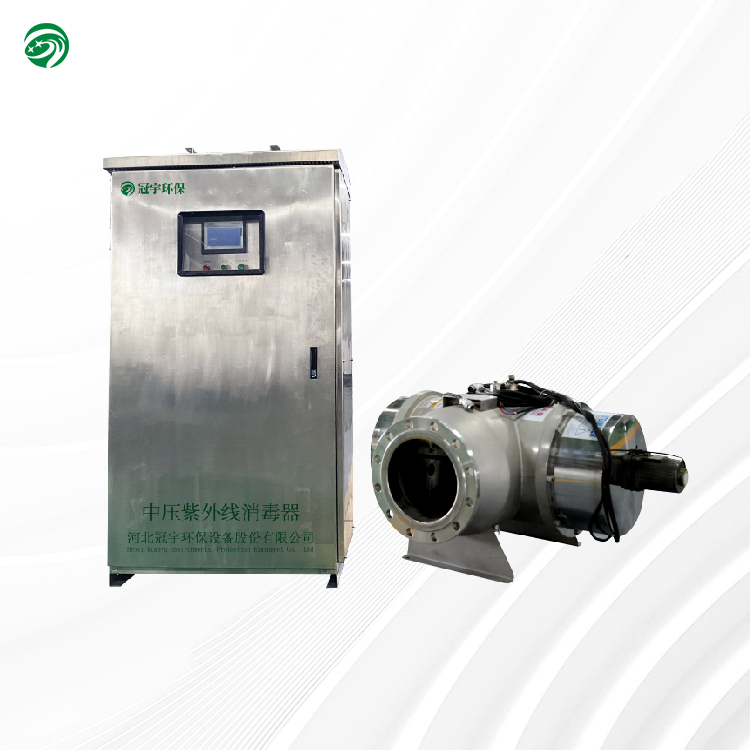

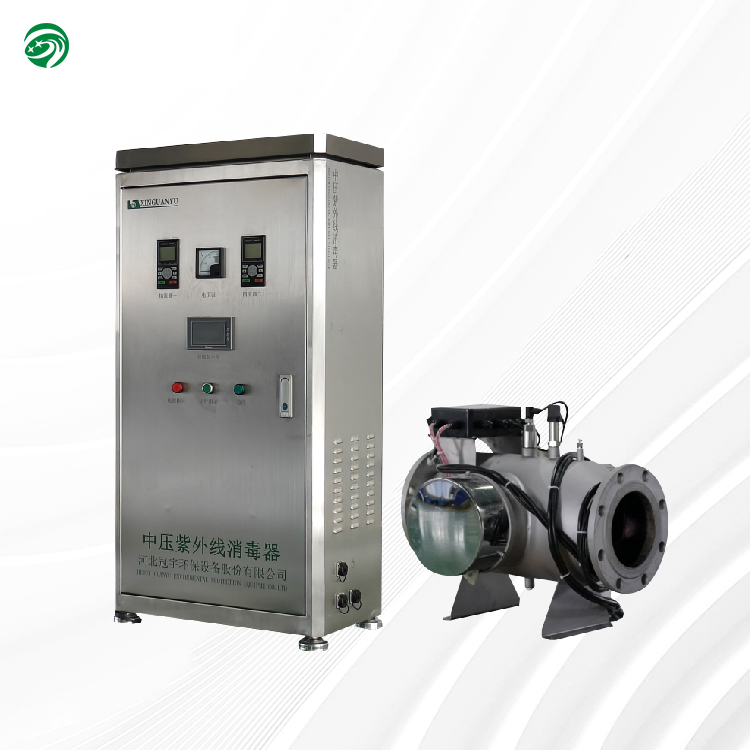

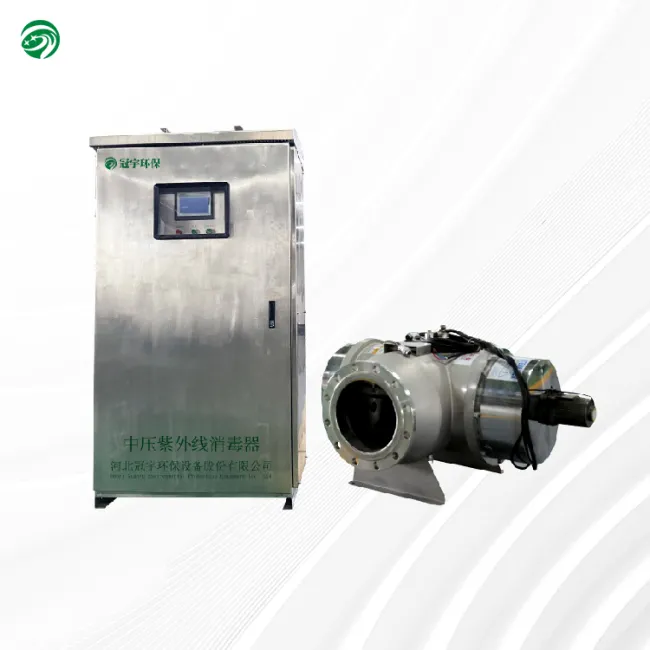

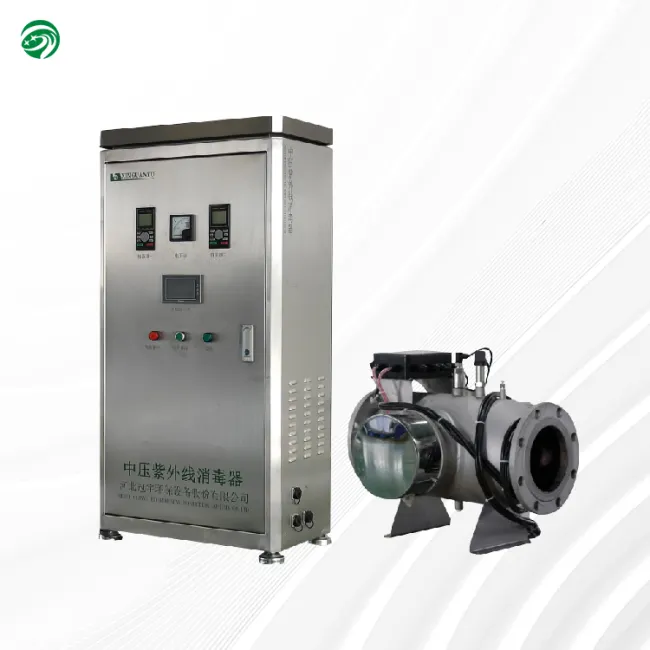

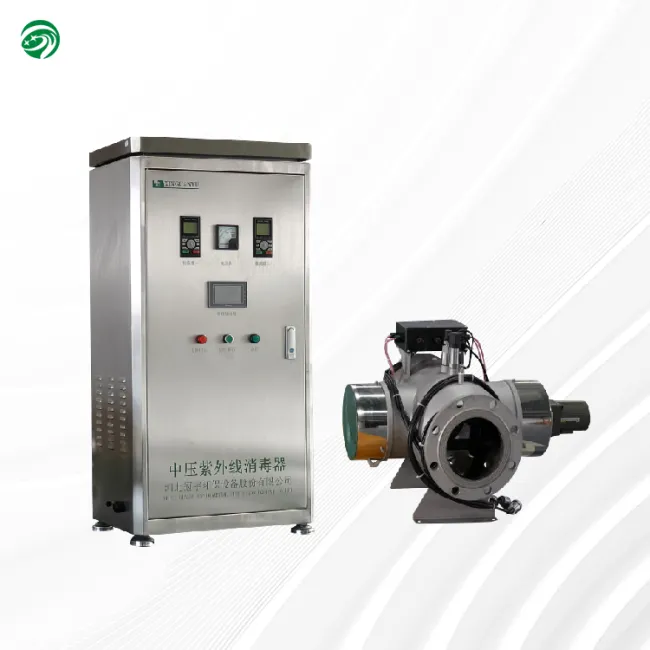

Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer
Water Park Medium Pressure UV Sterilizer

Water Park Medium Pressure UV Sterilizer

CaliberDN150-300
Power of single lamp3-6kw
Equipment power3-12kw
Automatic cleaningYes
Intensity monitoringYes
Material304/316 stainless steel
Reference water volume100-350m³/H
Number of lamps1-3
Disinfection power3-12kw
PLC and touch screenYes
Surface treatmentPolished/matte
Lamp brandImported
Voltage power supply380V50HZ
Product Details

Core Working Principle: Medium-pressure UV equipment relies on special medium-pressure mercury lamps to emit UV light across a broad wavelength range (200nm~400nm), with a focus on the UVC band (200~280nm). This wide spectrum includes wavelengths highly effective for sterilization and organic matter decomposition. UV irradiation destroys microbial DNA/RNA (stopping reproduction to achieve efficient disinfection) and breaks organic molecular bonds (decomposing pollutants like humus and odors in water).


Advantages of medium-pressure ultraviolet swimming pool water disinfection
Physical and green methods to efficiently kill various microorganisms in the water, including "two worms" Giardia and Cryptosporidium that have super tolerance to chlorine);
Efficiently decompose the "chlorine odor (chloramine)" in the water to improve the swimming and working environment;
The equipment does not need to replace the ballast for life, and the operating cost is extremely low;
Small footprint, perfect match with the renovation of existing swimming pools;
Fully automatic cleaning, only one lamp needs to be replaced every year (5 minutes).
Product Features

Durable light source system: Core medium-pressure mercury lamps offer high power, broad spectrum, and stable full-band UV emission; some models add multiple lamps to boost radiation intensity.

Reaction chamber: Well-designed to ensure uniform UV exposure, improving treatment effects. Made of UV-transparent, corrosion-resistant materials (e.g., quartz glass).

Control system: Precisely controls equipment start/stop, runtime, UV intensity, etc., with automatic cleaning for easy operation and stable performance.

Broad-spectrum disinfection: Full-band UV effectively kills bacteria, viruses, fungi, algae, and other microorganisms.

Efficient organic treatment: Decomposes water-borne organic pollutants, such as humus and odorous substances.

Quick response: Acts fast on microorganisms and organic matter, achieving disinfection and decomposition in a short time.

No secondary pollution: UV disinfection is a physical process, avoiding secondary pollution caused by chemical disinfectants.


Application of medium-pressure ultraviolet in swimming pool process

Photochemical action of ultraviolet rays

1.Reduce TOC concentration: Medium-pressure UV irradiation breaks down organic molecules in pool water.

2.Enhance water clarity: After using the UV system, pool water transmittance (T10) increases from 75% to 95%.

3.Lower THMs: The UV system’s photochemical activity, combined with reduced chlorine dosage post-installation, decreases the pool’s trihalomethane (THMs) concentration.


Technical Parameters
Equipment modelDisinfection powerSingle lamp powerNumber of lampsDiameterReference water volume (m³/H)Voltage power
GYZ-UUVC-1/1.0KW1KW1KW1 stickDN10030-40220V50Hz
GYZ-UUVC-1/2.0KW2KW2KW1 stickDN12560-80380V50Hz
GYZ-UUVC-1/3.0KW3KW3KW1 stickDN150100-125380V50Hz
GYZ-UUVC-2/2.0KW4KW2KW2 sticksDN200130-150380V50Hz
GYZ-UUVC-1/6.0KW6KW6KW1 stickDN250200-250380V50Hz
GYZ-UUVC-3/3.0KW9KW3KW3 sticksDN250300-350380V50Hz
GYZ-UUVC-2/6.0KW12kW6KW2 sticksDN300300-350380V50Hz
GYZ-UUVC-3/6.0KW18KW6KW3 sticksDN350350-400380V50Hz
GYZ-UUVC-4/6.0KW24KW6KW4 sticksDN400400-450380V50Hz
