| PLC and touch screen | Yes |
| Surface treatment | Polished/matte |
| Lamp brand | Imported |
| Voltage power supply | 380V50Hz |
| Number of lamps | 1-3 pieces |
| Caliber | DN150-300 |
| Disinfection power | 3-12kw |
| Automatic cleaning | Yes |
| Intensity monitoring | Yes |
| Material | 304/316 stainless steel |
| Reference water volume | 100-350m³/H |
| Single lamp power | 3-6kw |
| Equipment power | 3-12kw |

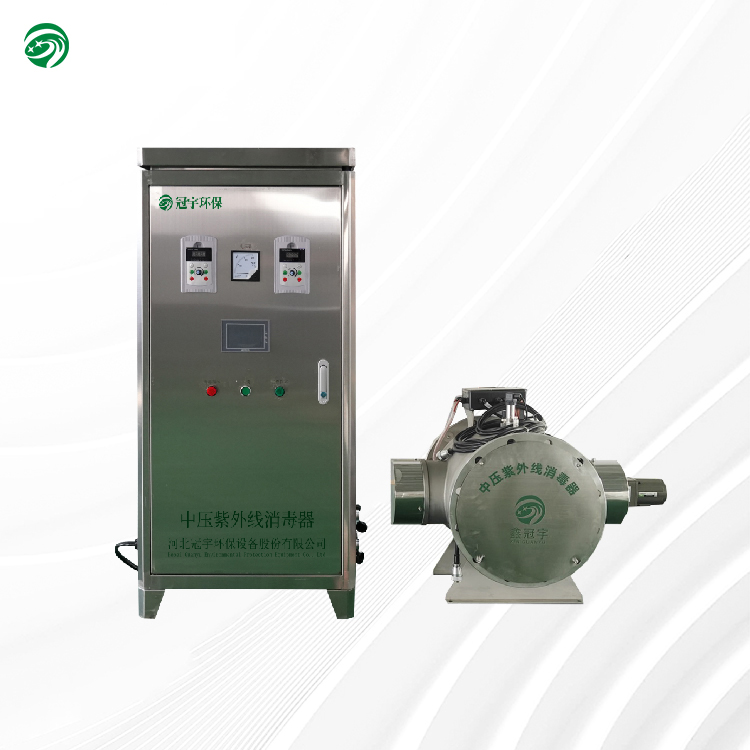

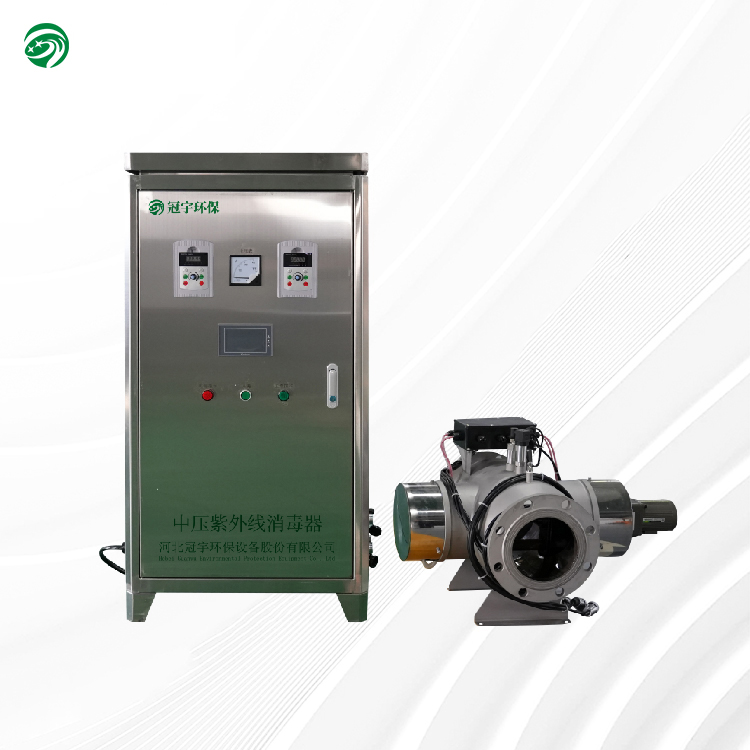

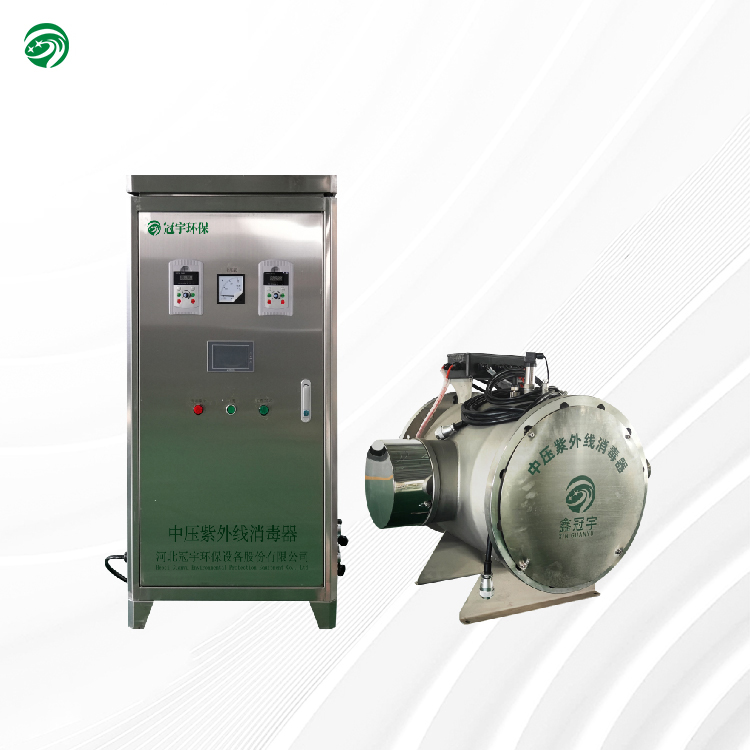

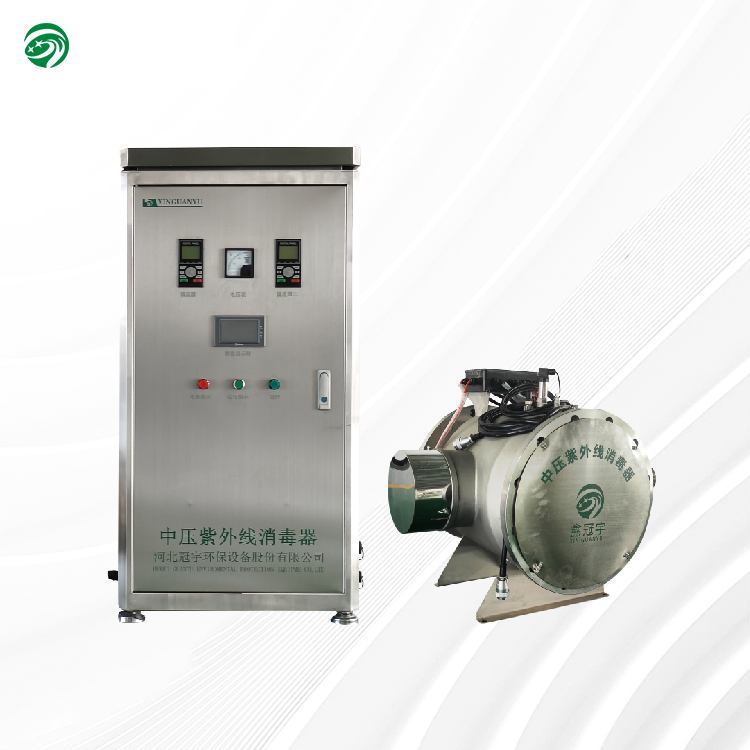

The core working principle of medium pressure ultraviolet equipment is to emit ultraviolet rays covering a wide wavelength range (wavelength range 200nm~400nm), especially the UVC band (200~280nm) through a special medium pressure mercury lamp. It can emit ultraviolet rays covering a wide wavelength, including multiple bands that have significant effects on sterilization and decomposition of organic matter.
Through ultraviolet irradiation, the DNA or RNA structure of microorganisms is destroyed, making it impossible for them to reproduce and survive, thereby achieving efficient sterilization and disinfection. In addition, the energy of ultraviolet rays can also cause the molecular bonds of organic matter to break and decompose organic pollutants, such as removing humus and odor substances in water.
Highly durable light source system
The core is a medium pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet rays. Some equipment is also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;
Reaction chamber
A well-designed reaction chamber ensures that ultraviolet rays are evenly irradiated on the treatment object, improving the treatment effect. Its material is usually selected from materials with high UV transmittance and corrosion resistance, such as quartz glass;
Control system
Achieve precise control of parameters such as equipment start, stop, running time, UV intensity, etc., automatic cleaning, convenient operation and ensure stable operation of the equipment;
Broad-spectrum sterilization and disinfection
Full-band UV rays can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, with a wide coverage;
Efficient treatment of organic matter
Decompose organic pollutants in water, such as removing humus and odor substances in water;
Quick response
The action process of ultraviolet rays on microorganisms and organic matter is rapid, and can achieve the effect of sterilization and decomposition of organic matter in a short time;
No secondary pollution
The UV sterilization and disinfection process is a physical action, and will not produce secondary pollution like chemical disinfectants.
Photochemical action of ultraviolet rays
1. Reduce the concentration of TOC-medium-pressure ultraviolet irradiation can decompose organic molecules in the swimming pool;
2. Improve the clarity of the pool water-after the use of the ultraviolet system, the transmittance (T10) of the pool water increases from 75% to 95%;
3. Reduce THMs (trihalomethanes)-the photochemical action ability of the ultraviolet system and the reduction of chlorine addition after the introduction of the system make the THMs concentration of the swimming pool lower.
| Equipment model | Disinfection power | Single lamp power | Number of lamps | Diameter | Reference water volume (m³/H) | Voltage power |
| GYZ-UUVC-1/1.0KW | 1KW | 1KW | 1 stick | DN100 | 30-40 | 220V50Hz |
| GYZ-UUVC-1/2.0KW | 2KW | 2KW | 1 stick | DN125 | 60-80 | 380V50Hz |
| GYZ-UUVC-1/3.0KW | 3KW | 3KW | 1 stick | DN150 | 100-125 | 380V50Hz |
| GYZ-UUVC-2/2.0KW | 4KW | 2KW | 2 sticks | DN200 | 130-150 | 380V50Hz |
| GYZ-UUVC-1/6.0KW | 6KW | 6KW | 1 stick | DN250 | 200-250 | 380V50Hz |
| GYZ-UUVC-3/3.0KW | 9KW | 3KW | 3 sticks | DN250 | 300-350 | 380V50Hz |
| GYZ-UUVC-2/6.0KW | 12kW | 6KW | 2 sticks | DN300 | 300-350 | 380V50Hz |
| GYZ-UUVC-3/6.0KW | 18KW | 6KW | 3 sticks | DN350 | 350-400 | 380V50Hz |
| GYZ-UUVC-4/6.0KW | 24KW | 6KW | 4 sticks | DN400 | 400-450 | 380V50Hz |
