| PLC and touch screen | Yes |
| Surface treatment | Polishing/matte |
| Lamp brand | Imported |
| Voltage power supply | 220V50Hz-380V50HZ |
| Diameter | DN100-150 |
| Single lamp power | 1-3kw |
| Equipment power | 1-3kw |
| Automatic cleaning | Yes |
| Intensity monitoring | Yes |
| Material | 304/316 stainless steel |
| Reference water volume | 30-125m³/H |
| Number of lamps | 1 piece |
| Disinfection power | 1-3kw |
The core working principle of medium-pressure UV equipment is to emit ultraviolet rays covering a wide wavelength range (wavelength range 200nm~400nm), especially the UVC band (200~280nm) through a special medium-pressure mercury lamp. It can emit ultraviolet rays covering a wide wavelength, including multiple bands that have significant effects on sterilization and decomposition of organic matter.
Through ultraviolet irradiation, the DNA or RNA structure of microorganisms is destroyed, making them unable to reproduce and survive, thereby achieving efficient sterilization and disinfection. In addition, the energy of ultraviolet rays can also cause the molecular bonds of organic matter to break and decompose organic pollutants, such as removing humus and odor substances in water.
Highly durable light source system
The core is a medium-pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet rays. Some equipment is also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;
Reaction chamber
A well-designed reaction chamber ensures that ultraviolet rays are evenly irradiated on the treatment object, improving the treatment effect. Its material is usually selected from materials with high UV transmittance and corrosion resistance, such as quartz glass;
Control system
Achieve precise control of parameters such as equipment start, stop, running time, UV intensity, etc., automatic cleaning, convenient operation and ensure stable operation of the equipment;
Broad-spectrum sterilization
Full-band UV can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, with a wide coverage;
Efficient treatment of organic matter
Decompose organic pollutants in water, such as removing humus and odor substances in water;
Quick response
The action process of ultraviolet rays with microorganisms and organic matter is rapid, and can achieve the effect of sterilization and decomposition of organic matter in a short time;
No secondary pollution
The UV sterilization process is a physical action and will not produce secondary pollution like chemical disinfectants.
Many procedures in the pharmaceutical industry rely on ultrapure water to produce products that meet strict quality requirements. Process fluids also use non-ultrapure water, which must be free of microorganisms to prevent bacteria from colonizing in production facilities. The pharmaceutical industry uses medium pressure UV sterilizers to disinfect and de-ozone water to the highest purity standards. Pathogens that are resistant to chlorine can be eliminated by medium pressure UV sterilizers.
It successfully eliminates any contamination by interfering with the DNA of bacteria and preventing them from further multiplying. It is indispensable for process industries such as pharmaceutical production. It has no negative impact on water quality and provides excellent results by successfully treating common viruses.
By using medium pressure UV sterilizers, manufacturers can guarantee efficient deoxygenation and disinfection, meeting the requirements for pure water at all stages of pharmaceutical companies.
In addition to disinfection and sterilization, medium-pressure UV light can also effectively remove organic matter and impurities in water. Ultraviolet light can decompose organic pollutants in water, improve the purity of water, and provide clean water sources for drug production

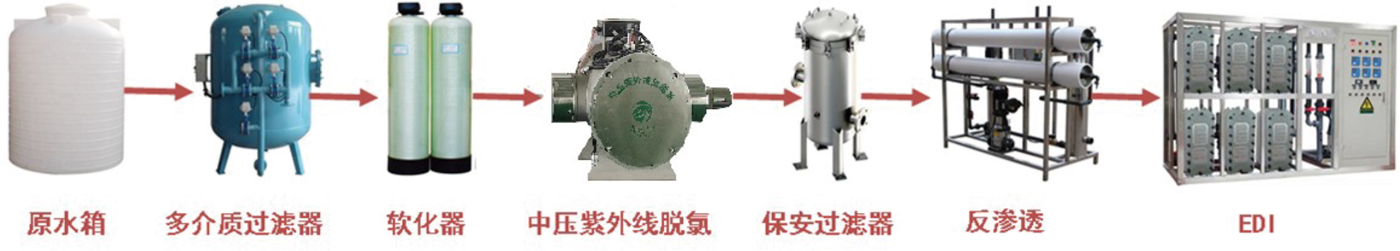

The traditional preparation process of pure water in the pharmaceutical field usually uses a combination of multi-media and activated carbon as pretreatment. Among them, activated carbon filtration is prone to adsorption saturation and particle precipitation due to its own characteristics, resulting in rapid attenuation of treatment efficiency, frequent maintenance, easy formation of biofilm and damage to subsequent RO filter membranes.
Medium-pressure UV light for the removal of residual chlorine is a green ultra-clean dechlorination technology used in the reverse osmosis front end of the water treatment process. It can replace traditional activated carbon or reducing agent and is a new trend in the application of pharmaceutical pure water treatment process.
| Equipment model | Disinfection power | Single lamp power | Number of lamps | Diameter | Reference water volume (m³/H) | Voltage power |
| GYZ-UUVC-1/1.0KW | 1KW | 1KW | 1 stick | DN100 | 30-40 | 220V50Hz |
| GYZ-UUVC-1/2.0KW | 2KW | 2KW | 1 stick | DN125 | 60-80 | 380V50Hz |
| GYZ-UUVC-1/3.0KW | 3KW | 3KW | 1 stick | DN150 | 100-125 | 380V50Hz |
| GYZ-UUVC-2/2.0KW | 4KW | 2KW | 2 sticks | DN200 | 130-150 | 380V50Hz |
| GYZ-UUVC-1/6.0KW | 6KW | 6KW | 1 stick | DN250 | 200-250 | 380V50Hz |
| GYZ-UUVC-3/3.0KW | 9KW | 3KW | 3 sticks | DN250 | 300-350 | 380V50Hz |
| GYZ-UUVC-2/6.0KW | 12kW | 6KW | 2 sticks | DN300 | 300-350 | 380V50Hz |
| GYZ-UUVC-3/6.0KW | 18KW | 6KW | 3 sticks | DN350 | 350-400 | 380V50Hz |
| GYZ-UUVC-4/6.0KW | 24KW | 6KW | 4 sticks | DN400 | 400-450 | 380V50Hz |
