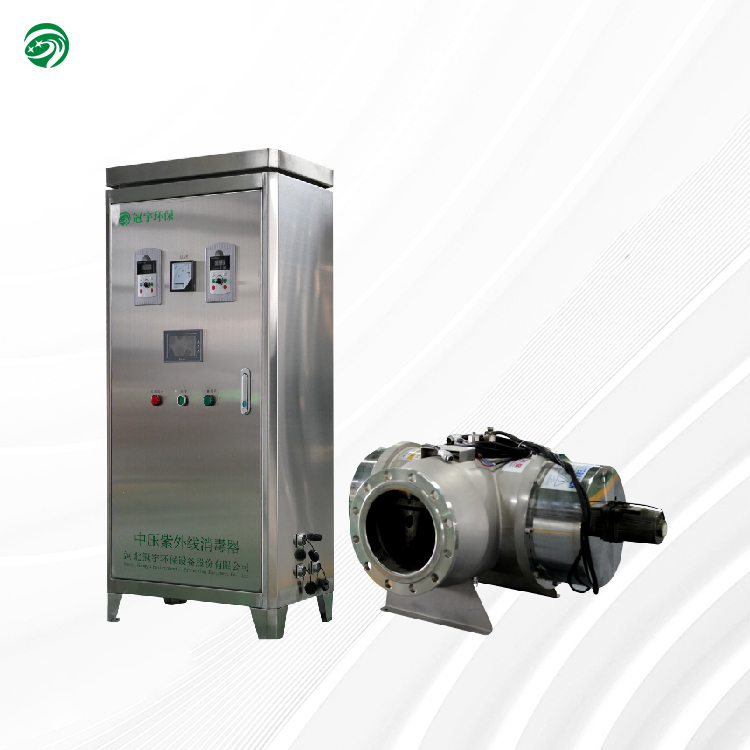

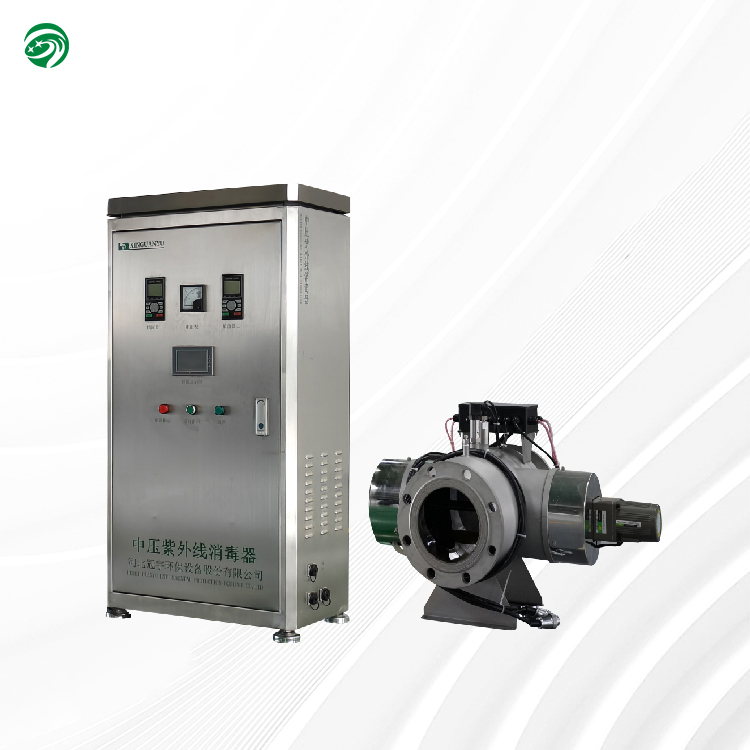

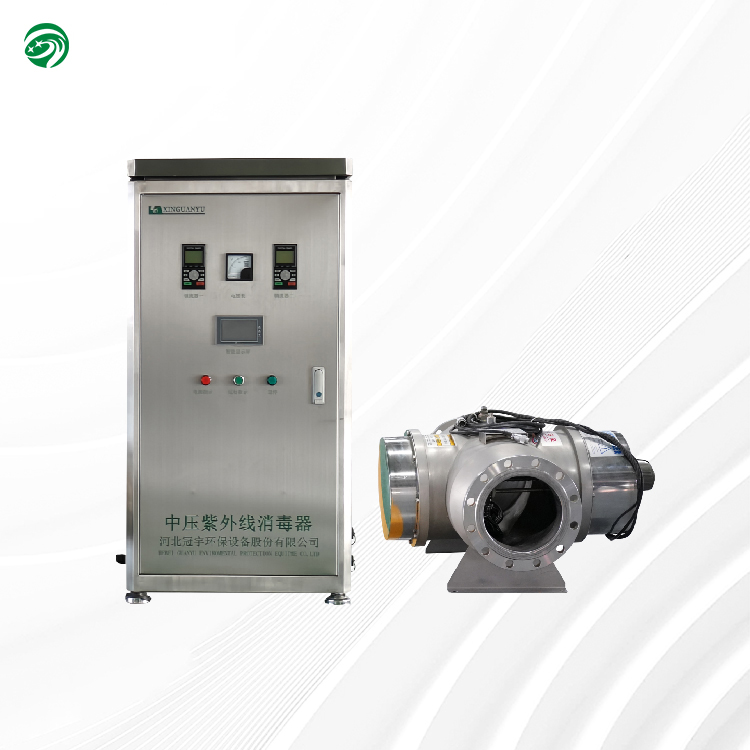

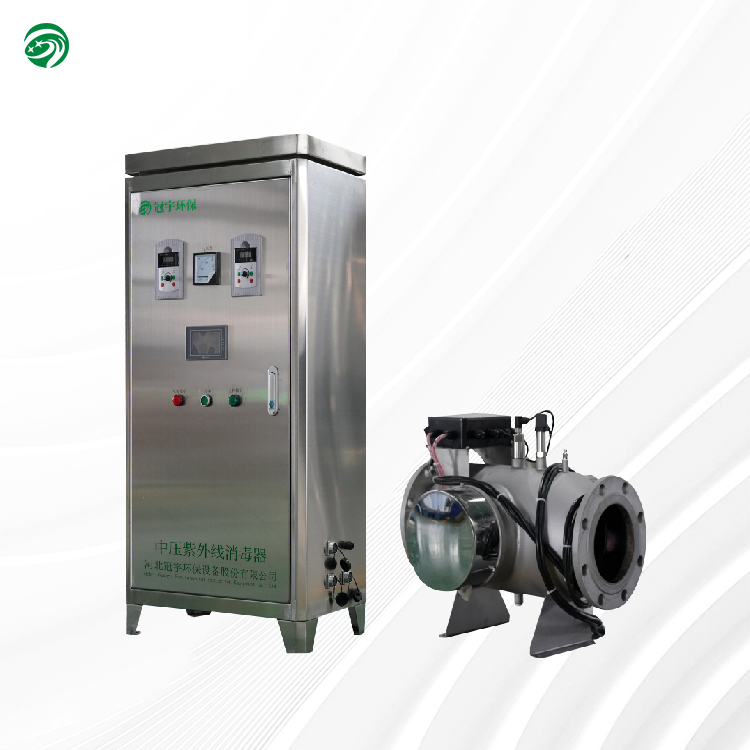

Medium Pressure UV Sterilizer
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry
Medium-pressure UV sterilizer for the electronics industry

Medium-pressure UV sterilizer for the electronics industry

DiameterDN100-150
Power of single lamp1kw-3kw
Automatic cleaningYes
Intensity monitoringYes
Material304/316 stainless steel
Reference water volume30-125m³/H
Number of lamps1 piece
Equipment power1kw-3kw
PLC and touch screenYes
Surface treatmentPolished/matte
Lamp brandImported
Voltage power supply220V50HZ - 380V50HZ
Product Details

Medium-pressure UV equipment uses special mercury lamps to emit broad-spectrum UV (200nm~400nm, focusing on UVC 200~280nm) – wavelengths effective for sterilization and organic decomposition. UV destroys microbial DNA/RNA (stopping reproduction for disinfection) and breaks organic bonds (decomposing pollutants like humus and odors in water).


Product Features

Durable light source:

High-power, broad-spectrum medium-pressure mercury lamps (some with multiple lamps for stronger intensity).

Reaction chamber

 Optimized for uniform UV exposure; made of UV-transparent, corrosion-resistant materials (e.g., quartz glass).

Control system

Precise control of start/stop, runtime, UV intensity; auto-cleaning ensures easy, stable operation.

Broad-spectrum sterilization

Kills bacteria, viruses, fungi, algae.

Efficient organic treatment: Breaks down water pollutants.

Quick response: Fast sterilization and organic decomposition.

No secondary pollution: Physical process, unlike chemicals.


Application of medium-pressure ultraviolet rays in the electronics industry

TOC remover is to remove TOC total organic carbon in ultrapure water. TOC total organic carbon is an organic medium that is difficult to degrade in ultrapure water, which affects the purity of ultrapure water used by the semiconductor industry to clean semiconductor materials or electronic chips. There are the following more significant effects:

1. The total organic carbon residue on the product will cause the performance of the semiconductor material to deteriorate or fail;

2. Under certain conditions, the total organic carbon will undergo an oxidation reaction, causing the semiconductor material to oxidize and corrode, damaging its structure and function;

3. When the total organic matter remains in the water, it will form small bubbles or tiny gas groups attached to the surface of the product, damaging its structure and function.

The principle of ultraviolet light to remove total organic carbon in the field of ultrapure water

Photolysis: UV photons interact with water molecules to stimulate water molecules to generate highly oxidizing hydroxyl radicals (·OH), which can oxidize organic matter in the water;

Direct photolysis: High-energy photons directly break the organic molecular chain and decompose the organic matter;

Ionization: UV photons break the organic molecular chain, ionize it, and remove it through subsequent ion exchange;

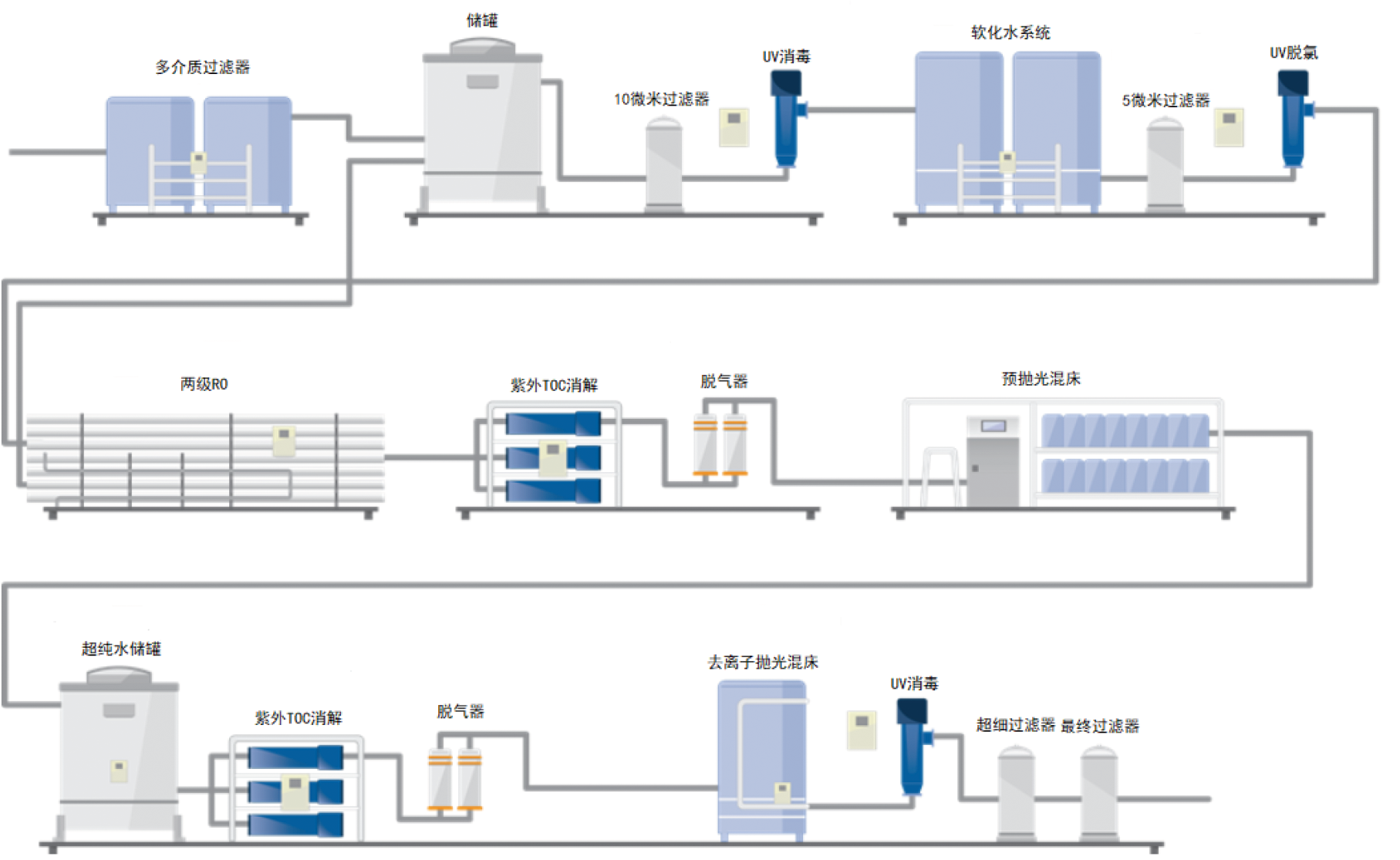

Application process of medium-pressure ultraviolet light in the electronics industry

Medium-pressure UV sterilizer for the electronics industry

Technical Parameters
Equipment modelDisinfection powerSingle lamp powerNumber of lampsDiameterReference water volume (m³/H)Voltage power
GYZ-UUVC-1/1.0KW1KW1KW1 stickDN10030-40220V50Hz
GYZ-UUVC-1/2.0KW2KW2KW1 stickDN12560-80380V50Hz
GYZ-UUVC-1/3.0KW3KW3KW1 stickDN150100-125380V50Hz
GYZ-UUVC-2/2.0KW4KW2KW2 sticksDN200130-150380V50Hz
GYZ-UUVC-1/6.0KW6KW6KW1 stickDN250200-250380V50Hz
GYZ-UUVC-3/3.0KW9KW3KW3 sticksDN250300-350380V50Hz
GYZ-UUVC-2/6.0KW12kW6KW2 sticksDN300300-350380V50Hz
GYZ-UUVC-3/6.0KW18KW6KW3 sticksDN350350-400380V50Hz
GYZ-UUVC-4/6.0KW24KW6KW4 sticksDN400400-450380V50Hz
