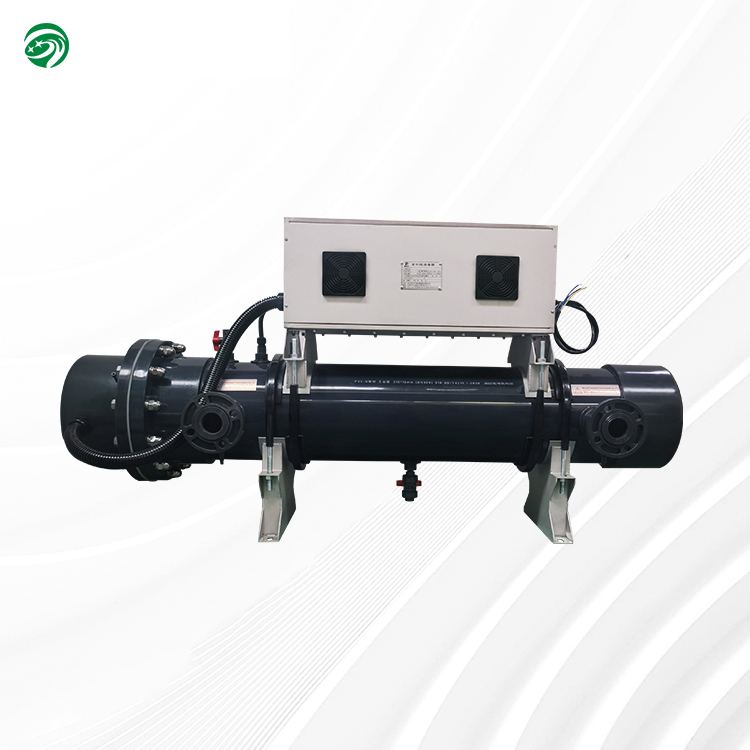

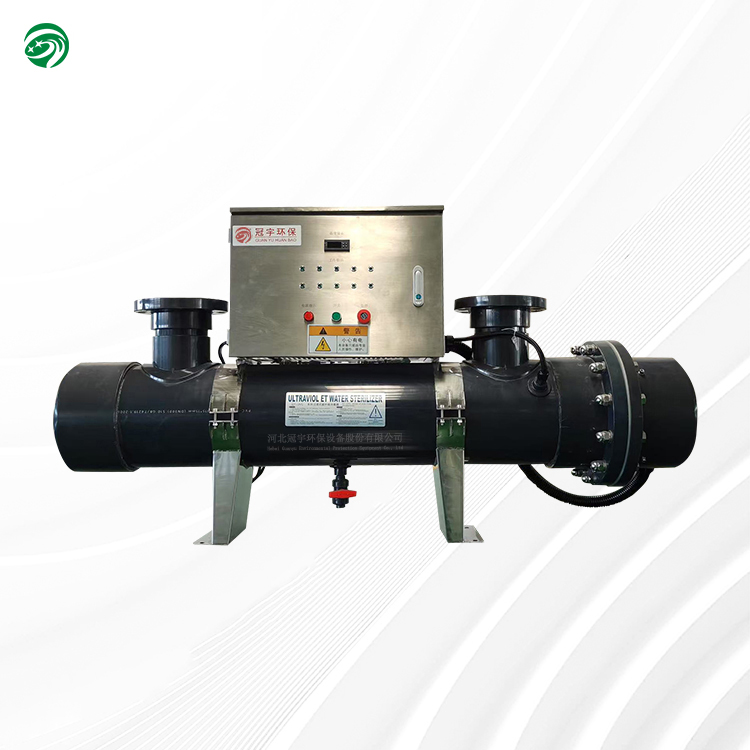

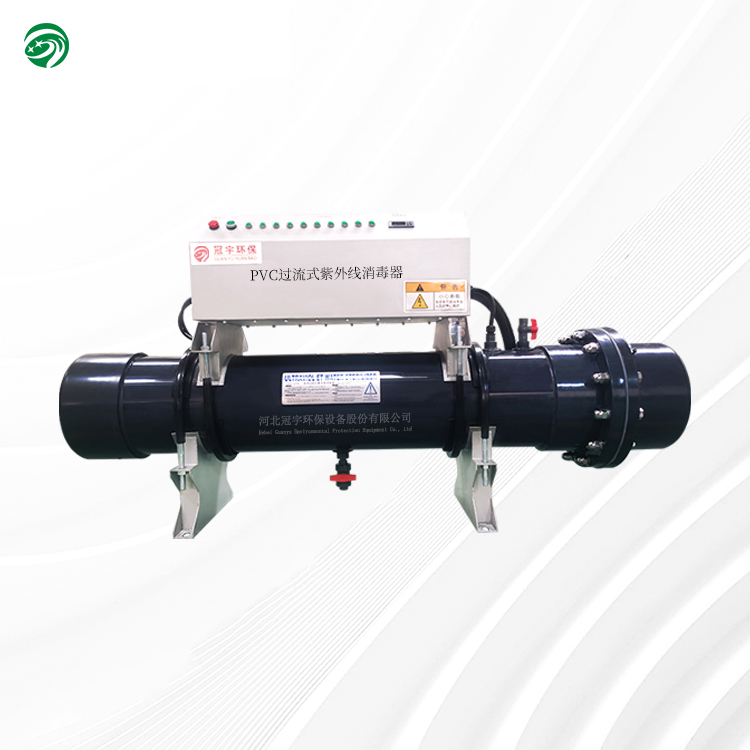

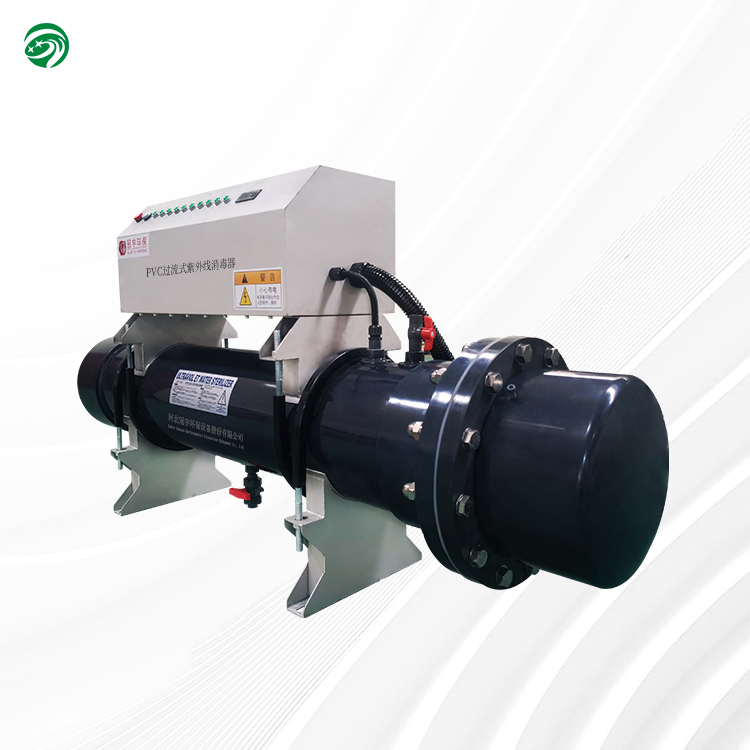

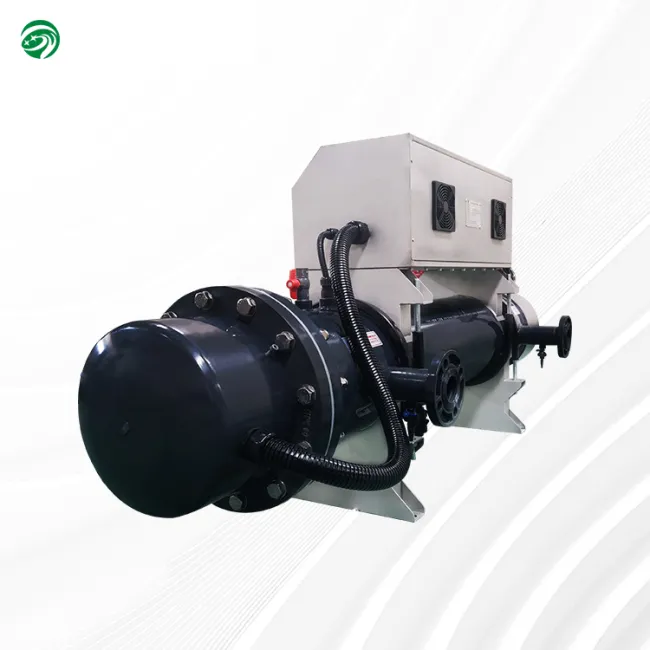

Aquaculture UV Sterilizer
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV
PVC for aquaculture UV

PVC for aquaculture UV

BrandXinguanyu
ModelGY-UVC
Available for saleNationwide
Shipping placeHebei
System withstand voltage0.1-0.4MPa
Status indicatorSound and light alarm (optional)
MaterialPVC
Application areasAquaculture
BallastElectronic ballast, adjustable power
Product Details

Ultraviolet disinfection is now widely applied in aquaculture and ornamental fish farming. During aquaculture, algae in water as well as bacteria and viruses that cause fish diseases can be killed and decomposed within seconds under intense ultraviolet radiation. In water bodies purified by this UV disinfection method, over 99% of bacteria and viruses are eliminated—this reduces fish disease rates, increases breeding density and yield, and enhances the quality of ornamental fish.


Product Features

Adopts high-quality PVC pipes (customized for aquaculture), molded connections, and pressure-bearing main pipeline accessories. These components offer corrosion resistance, anti-aging properties, and acid-alkali resistance, making them suitable for aquatic environments (including seawater).

Cost-effective and practical: compared with 316L stainless steel equipment, it cuts investment costs by 20%.

Optional light sources: imported light sources or original Philips UV-C lamps.

Uses high-transmittance, high-purity quartz sleeves to ensure UV transmittance of over 90%.

No chemical reactions occur during use, avoiding secondary pollution.

Inlet and outlet connections support threaded or flange types; diameters can be customized based on user requirements.


Performance Characteristics
Equipped with a working status indicator light; optional sound/light alarm function.
Lamp options: U.S.-imported light sources, Philips lamps, or high-quality domestic lamps. Lamp lifespan: 12,000 hours.
Ballast options: domestic or imported (selected based on user needs).
System pressure resistance: 0.1–0.4 Mpa


Technical Parameters
ModelPowerWater volumeDiameter
GY-UVC-20-360W360W≤10m³/hDN50
GY-UVC-20-480W480W≤15m³/hDN65
GY-UVC-20-600W600W≤20m³/hDN80
GY-UVC-20-840W840W≤25m³/hDN100
GY-UVC-20-1050W1050W≤30m³/hDN100
GY-UVC-20-1280W1280W≤40m³/hDN100
GY-UVC-20-1600W1600W≤50m³/hDN150
GY-UVC-20-1920W1920W≤60m³/hDN150
GY-UVC-20-2560W2560W≤80m³/hDN150
GY-UVC-20-3200W3200W≤100m³/hDN150
