Aquaculture UV Sterilizer
Home / Products / Aquaculture UV Sterilizer / PVC aquaculture UV sterilizer

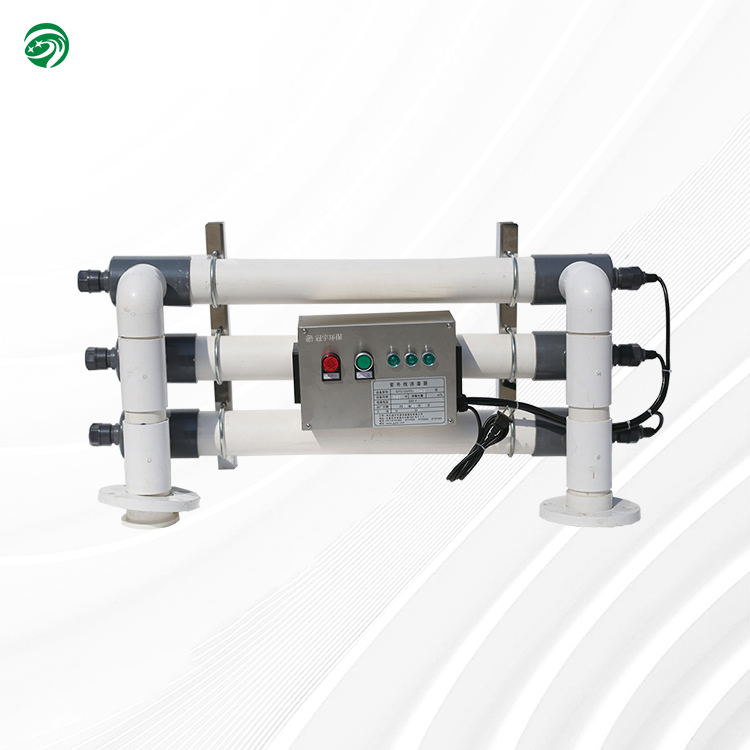

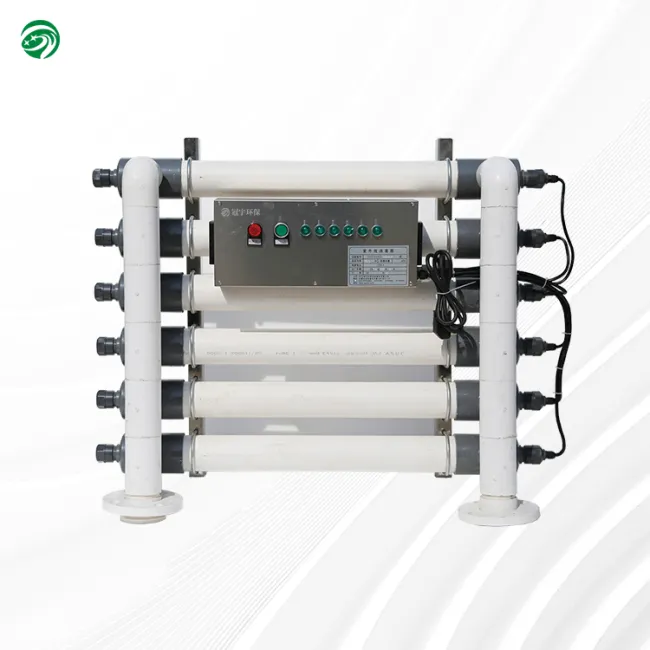

PVC aquaculture UV sterilizer
PVC aquaculture UV sterilizer
PVC aquaculture UV sterilizer
PVC aquaculture UV sterilizer

PVC aquaculture UV sterilizer

BrandXinguanyu
ModelGY-UVC
System pressure resistance0.1-0.4MPa
Lamp tubeDomestic/Imported
MaterialPVC
Casing materialQuartz
Place of shipmentHebei
BallastElectronic ballast, adjustable power
Status indicatorSound and light alarm (optional)
Application areaAquaculture
Sales rangeNationwide
Custom processingSupport
Inquire Now
Product Details

UV disinfection is now widely used in aquaculture and ornamental fish farming. During farming, algae in water and fish disease-causing bacteria/viruses can be killed and decomposed in just seconds under intense UV radiation. After UV purification, over 99% of bacteria and viruses in the water are eliminated—this lowers fish disease rates, increases breeding density and output, and improves the quality of ornamental fish.


Product Features

Aquaculture-specific materials: Uses high-quality PVC pipes (custom-made for aquaculture), molded connections, pressure-bearing parts, and main pipeline accessories. These components offer corrosion resistance, anti-aging performance, and acid-alkali resistance, suitable for aquatic environments (including seawater).

Cost-saving: Economical and practical; cuts investment by 20% compared to 316L stainless steel equipment.

Reliable light sources: Optional imported light sources or original Philips UV-C lamps.

High UV transmittance: Adopts high-purity, high-transmittance quartz sleeves to ensure over 90% UV light transmittance.

Eco-friendly: No chemical reactions, avoiding secondary pollution.

Customizable connections: Inlet/outlet support threaded or flange connections; diameters can be customized per user needs.


Performance Characteristics

Status monitoring: Equipped with a working status indicator light; optional sound/light alarm function.

Lamp options: U.S.-imported light sources, Philips lamps, or high-quality domestic lamps (optional). Lamp lifespan: 12,000 hours.

Ballast selection: Domestic or imported models, based on user requirements.

Pressure resistance: System withstands 0.1–0.4 Mpa.


Technical Parameters
ModelPowerWater volumeDiameter
GY-UVC-20-360W360W≤10m³/hDN50
GY-UVC-20-480W480W≤15m³/hDN65
GY-UVC-20-600W600W≤20m³/hDN80
GY-UVC-20-840W840W≤25m³/hDN100
GY-UVC-20-1050W1050W≤30m³/hDN100
GY-UVC-20-1280W1280W≤40m³/hDN100
GY-UVC-20-1600W1600W≤50m³/hDN150
GY-UVC-20-1920W1920W≤60m³/hDN150
GY-UVC-20-2560W2560W≤80m³/hDN150
GY-UVC-20-3200W3200W≤100m³/hDN150
